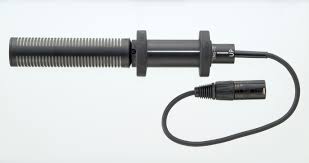

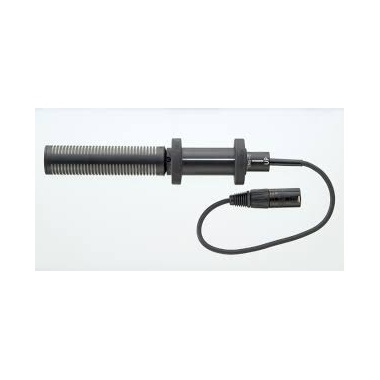

CMS-10 Mono/Stereo switchable short shotgun microphone
The CMS-10 Stereo Mono Switchable Shotgun Microphone from Sanken is a compact, shotgun and M-S stereo microphone designed for use with HD camcorders. The CMS-10 incorporates a Mid-Side (M-S) capsule design to provide stunning stereo imagery while accurately capturing frontal audio signal with exceptional directionality and accuracy.
Main Benefits
- M-S Stereo Design
- HD Camera Mountable
- Minimal Residual Noise
- Non-Proximity Effect
Description
The result is an audio signal with exceptional rejection of residual noise and just the right amount of ambiance, accurately placed within the stereo field. The wide frequency and exceptional sensitivity response results in pristine audio fidelity with a low noise floor. The CMS-10 features a 5-pin XLR output (cable included), compatible with most HD camera microphone inputs.
Tech Specs
| Transducer |
Condenser |
| Polar Pattern |
Hypercardioid, Supercardioid |
| Pattern Selection |
Switched |
| Frequency Range |
150 Hz to 20 kHz |
| Equivalent Noise Level |
Hypercardioid: 20 dB A-Weighted
Supercardioid: 22 dB A-Weighted |
| Maximum SPL |
120 dB SPL |
| Impedance |
240 Ohms @ 1 kHz |
| Sensitivity |
Hypercardioid: 50 mV/Pa
Supercardioid: 32 mV/Pa |
| Output Connectors |
1 x 5-Pin XLR |
| Cable Length |
11.8" / 30 cm |
| Operating Current Consumption |
2.5 mA |
| Operating Voltage |
48 V ± 4 V |
| Length |
8.31" / 211 mm |
| Diameter |
1.09" / 27.8 mm |
| Weight |
6.00 oz / 170 g |
| Package Weight |
0.9 lb |
| Box Dimensions (LxWxH) |
13.75 x 4.5 x 4.0" |
