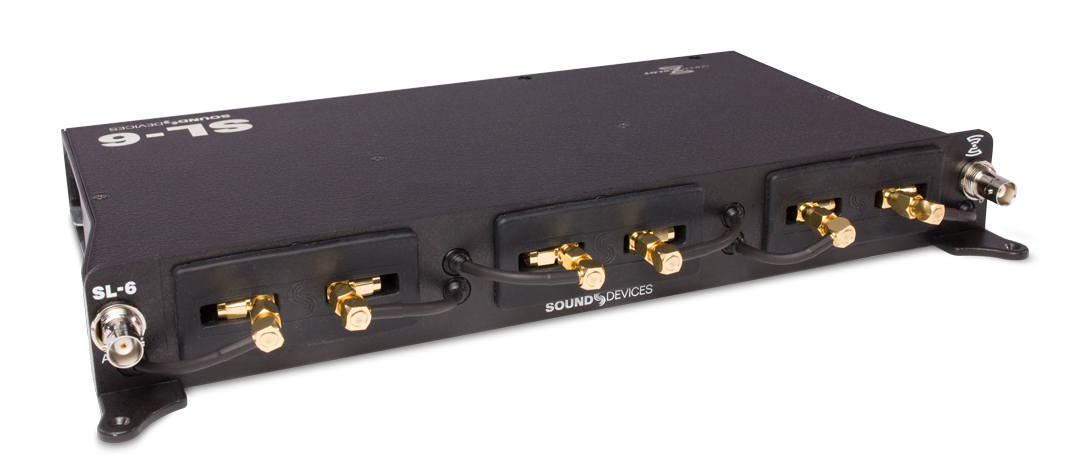

SL-6 Powering and Wireless System for 688 Field Mixer
Wireless integration accessory for the 688 and Scorpio. HoldS up to three dual unislot or SuperSlot™ compatible Recievers controedled via the 688 or Scorpio. Adds NP-1 powering option, two 12v isolated outputs & two non isolated outputs for external devices.Plus one USB Charging port. SL-Riser required to secure to Scorpio.
Main Benefits
- Power and Wireless Hub
- SuperSlot System Compatible
- USB Charging Powre
- 2x 12V Isolated Outputs
- 2x Direct Battery Outputs
Description

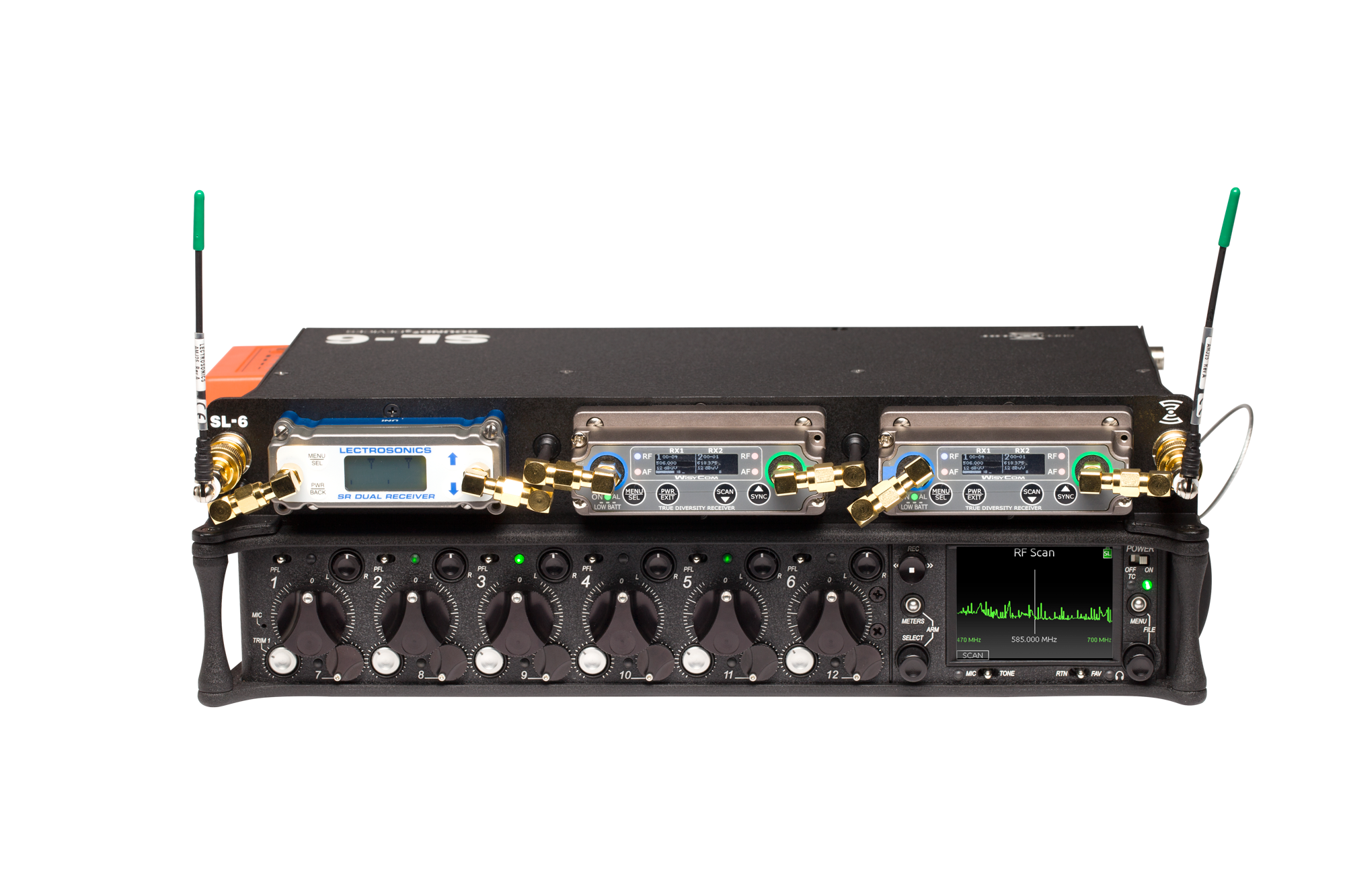

Designed to provide power and simplified wireless interconnection for their 688 field mixer, the SL-6 Powering and Wireless System for 688 Field Mixer from Sound Devices features an NP1 battery slot (battery not included), two 12V isolated outputs, a USB charging port, and two non-isolated direct battery outputs. It incorporates Sound Devices' SuperSlot wireless connectivity system, and supports models from Audio Ltd, Lectrosonics, and Wisycom.
Tech Specs
SL-6 Compatible Wireless Receivers
| Manufacturer |
Model |
Unislot Compatible
(Audio and Powering) |
SuperSlot Compatible
(Control, Monitoring & RF Scan from 688 LCD) |
| Audio Ltd |
En2 CX2-P |
✓ |
-- |
| Audio Ltd |
A10-RX |
✓ |
✓ |
| Lectrosonics |
SRa |
✓ |
-- |
| Lectrosonics |
SRb |
✓ |
✓ with audio board update from Lectrosonics |
| Lectrosonics |
SRc |
✓ |
✓ |
| Sennheiser |
EK-6042 |
✓ |
✓ |
| Sennheiser |
EK 3241 |
✓ (see note) |
-- |
| Wisycom |
MCR42 |
✓ |
✓ with SLK42-IKSS rear panel adapter |
Note: While the EK3241model is Unislot compatible for audio and powering, it is not compatible with the antenna distribution of the SL-6.
