Ambient Tiny Lockit Synchronizer

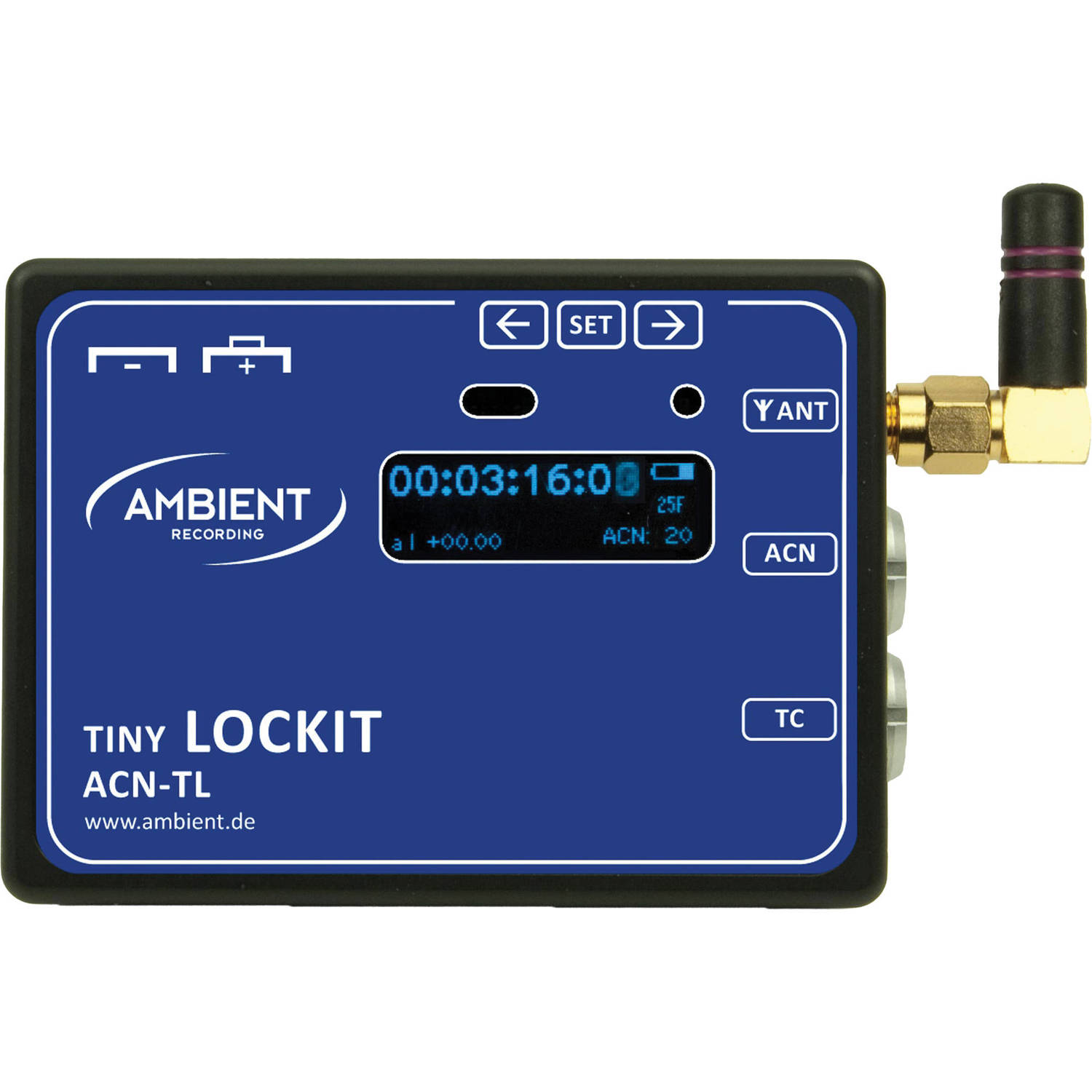

The ACN-TL Tiny Lockit Timecode Generator & Transceiver from Ambient Recording is a temperature compensating timecode generator. Ambient Clockit Network support enables full generator-buffered timecode transceiver functionality. Connections consist of an antenna F connector and two 5-pin Lemos that can be configured for timecode in/out, RS232, USB, GPIO, switching, DC in/out, ASCII, tune signal, and PPF. Drift is less than a frame a day.
Main Benefits:
- Temperature Compensating TC Generator
- Generator-Buffered Timecode Transceiver
- Ambient Clockit Network Support
- < 1 Frame / Day Drift
- Supports All Frame Rates
- OLED Display
- Adjustable Timecode Output
- LTC / MTC Conversion
- Built-In Antenna
- RS232, USB & GPIO Port
- Works 12 hours on 2 optional AAA batteries
- Machined and anodized aluminum body
Tech Specs
| Connections |

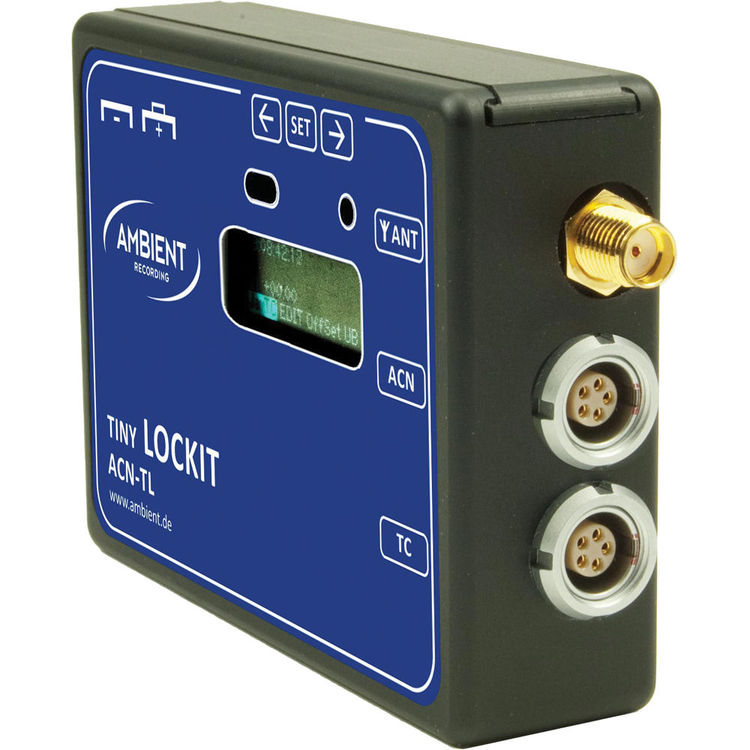

External antenna F connector
Lemo 5-pin Lemo/ACN: timecode in/out, RS232 serial port TX-RX, USB, GPIO, switch function, DC out
Lemo 5-pin Lemo/TC: timecode in/out, ASCII, tune signal, PPF, DC in |
| Drift |
Less than 1 frame a day (~0,1 ppm) |
| Power |

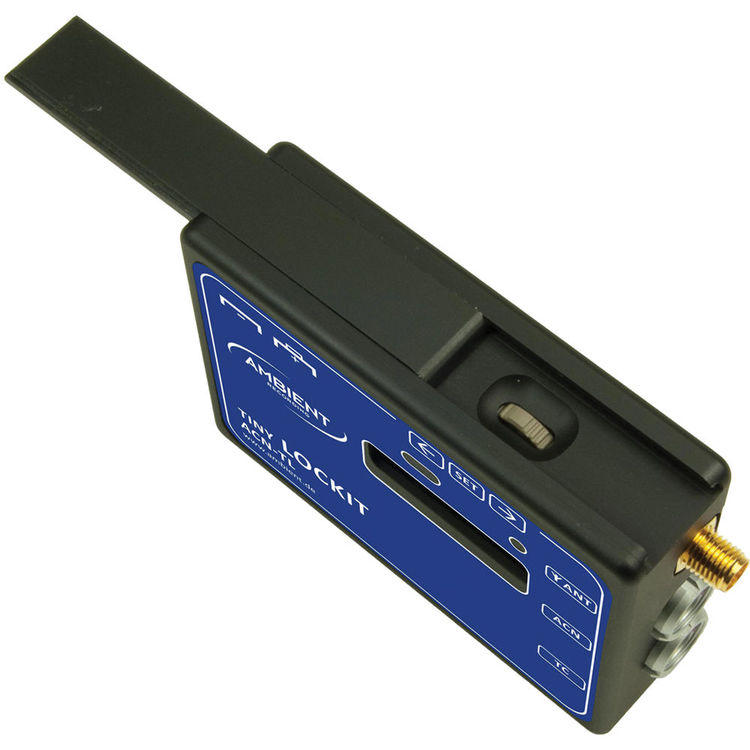

Works on 2 AAA batteries, not included |
| Housing |
Machined and anodized aluminum |
| Dimensions |
2.8 x 2.2 x .8" (7.2 x 5.6 x 2 cm) |
| Weight |
.26 lb (118 g) |
