Coiled mixer/camera loom, SD664, w/ TC-out Lemo

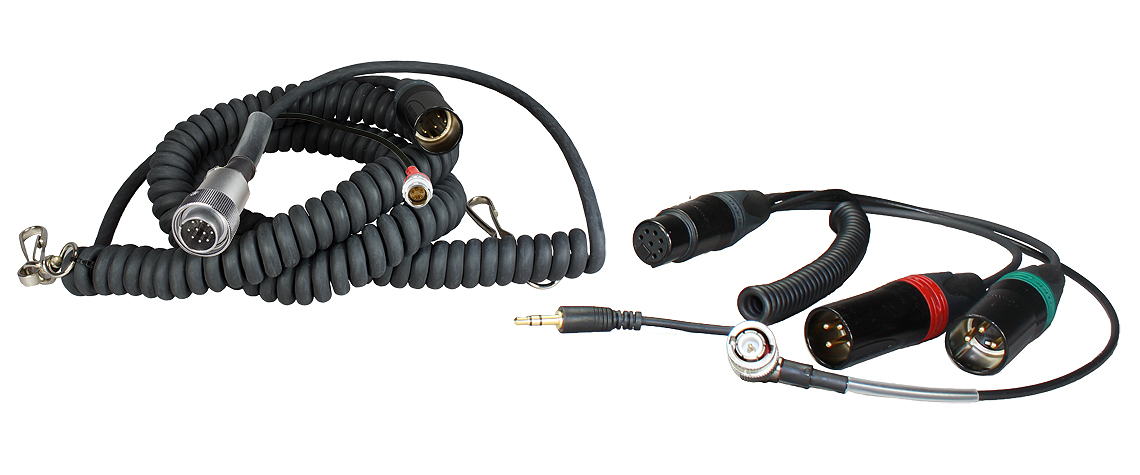

The Ambient Recording HBS664-10Y-7-35 is a coiled mixer/camera loom for the SD 664 mixer. The mixer side is equipped with Hirose 10-pin male and 5-pin Lemo for time code to 7-pin XLR male. The camera side has a Y-breakout cable with 7-pin XLR female to dual 3-pin XLR male, and a mono return via 3.5mm TRS mini plug on a coiled cord with BNC right angle plug for transmitting time code from the camera to the SD 664 mixer.
Tech Specs
| Coiled breakaway cable: |
| 10-pin Hirose male and 5-pin Lemo connector (TC-out) to 7-pin XLR male |
| Length approx. 1,8 m up to 5 m |
| Breakout cable (HBY7TC-35): |
| 7-pin XLR female to 2x 3-pin XLR male |
| Return via 3.5 mm TRS plug and BNC right angle |
| Return mono |
| Length approx. 30 cm |
