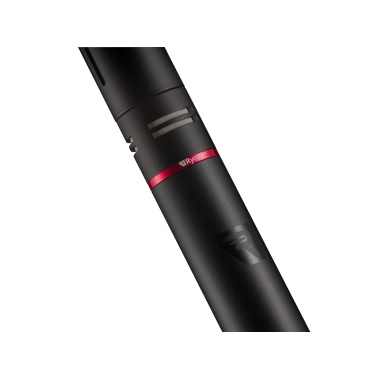

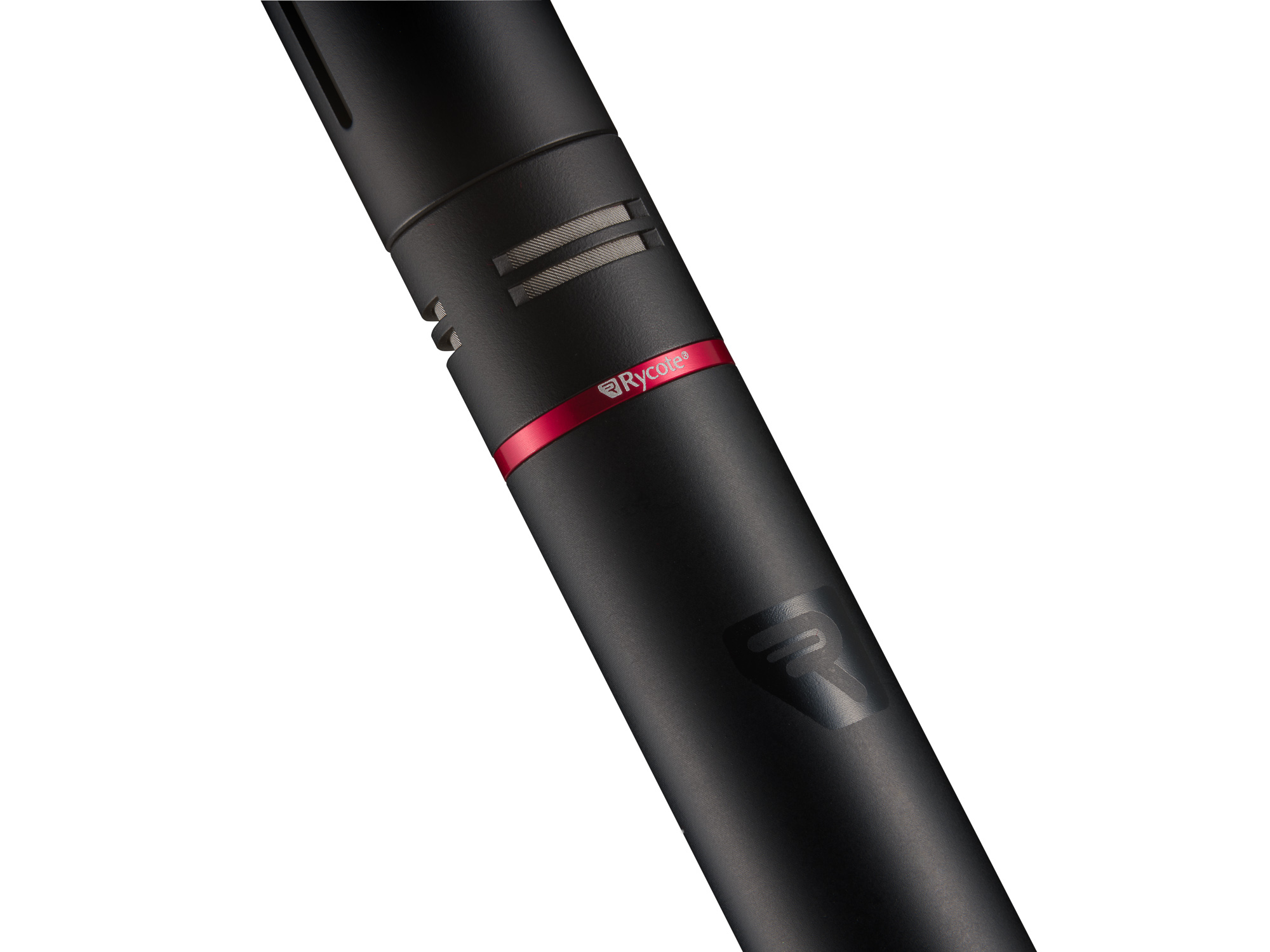

HC-15 Shotgun Microphone (15 cm)
Tech Specs
| Frequency Range (+/-3 dB) |
50 Hz - 20kHz |
| Self-Noise (DIN/IEC) |
6.0 dB-A |
| Polar Pattern |
Hyper-Cardioid |
| Capsule Type |
Back Electret Condenser |
| Output Sensitivity |
53.0 mV/Pa (-25.5 dB) |
| Maximum Output Voltage |
4 Vp |
| CMRR (@ 1kHz) |
> 60 dB |
| Min. Load Impedance |
1 kΩ |
| Signal/Noise Ratio |
87 dB typical (at 1kHz/Pa A-weighted) |
| Impedance |
100 Ω |
| Maximum Cable length |
100 metres |
| Powering |
P-48 |
| Powering Valid Range |
48-24V (Max SPL reduced at 24V) |
| Current Consumption |
3.0 mA |
| Max SPL |
133 dB SPL (at 1 kHz 1.0% THD Typical)
127 dB SPL (at 1 kHz 0.5% THD Typical)
|
| RFI Shield |
Yes |
| Pad |
No |
| Filter/EQ |
No |
| Connector |
XLR-3M |
| Length |
153 mm |
| Diameter |
19 mm |
| Weight |
90 g |
