Schoeps Double M/S Windshield Set 4V Set including 2*CCM 4V L, 1*CCM 8 L, WSR DMS LU, K DMS 5 U, AK DMS/3U
This double M/S set includes the microphones, windscreen and cables needed for double-M/S recording. It is designed for digital recording of the three unprocessed microphone signals, with subsequent post-processing to be performed through the use of our Double M/S plug-in.
Main Benefits
- complete set with three microphones for 5.0 surround with software matrix (DMS PlugIn)
- very small, lightweight array
- requires only three microphones and recording channels for 5.0 surround
Overview
This set comprises the following items:
- 2× CCM 4V Lg compact microphone (cardioid for lateral pickup),
- 1× CCM 8 Lg compact microphone (figure-8),

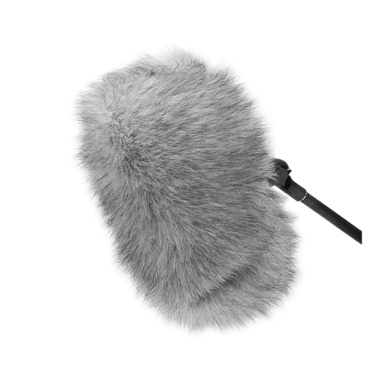

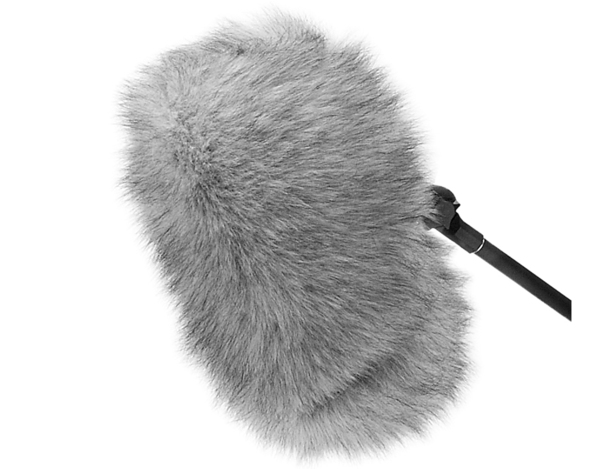

- WSR DMS LU windscreen,
- WJ DMS Windjammer,
- K DMS 5 U XLR-7 extension cable,
- AK DMS/3U adapter cable (XLR-7 / 3× XLR-3)

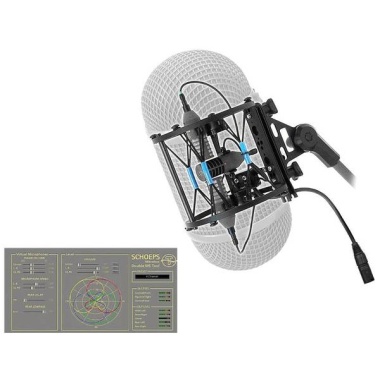

The SCHOEPS "Double M/S Tool" plug-in enables customized, intuitive decoding of the three signals of the Double M/S system.
Description and download of the "Double MS Tool" can be found here.
Specifications
| CUT 1 |
| Cut-off frequency (-3dB) |
70 Hz |
| Slope |
24 dB/oct. |
| Length |
64 mm |
| Diameter |
20/21 mm |
| Weight |
50 g |
| CUT 2 |
| Cut-off frequency |
35 Hz |
| Slope |
24 dB/oct |
| Length |
64 mm |
| Diameter |
20 / 21 mm |
| Weight |
50 g |
Included Accessories
Adapter Cable
AK DMS 3U
Compact Microphone CCM 4V
Compact Microphone CCM 8
Double M/S Basket windscreen with WindjammerWSR DMS LU
Surround Plug-in for RTAS, VSTDouble MS Tool (2011)
Surround Plug-in for RTAS, VST, AUDouble MS Tool BF (2012)
XLR-7 Multicore CableK DMS 5 U
