Sound Devices 970

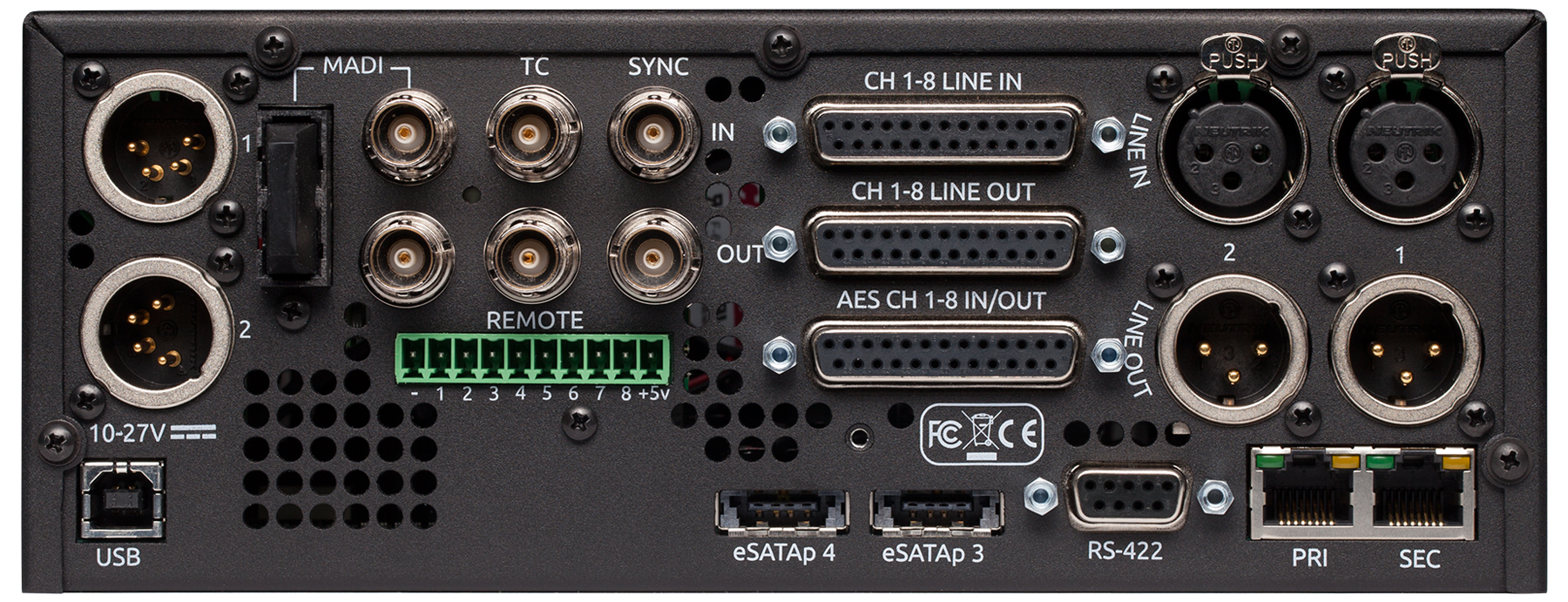

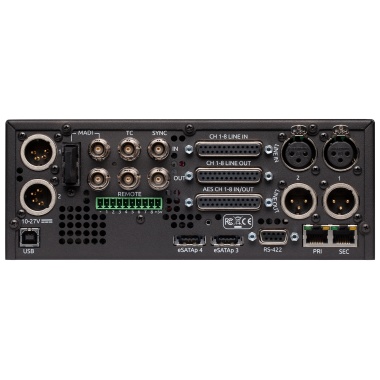

Rack-mounted audio recorder with time code. 64-track mono or polyphonic WAV file recording. I/O includes 8-balanced line level, 8-AES3, 64-Dante, and 64-MADI. Word clock I/O. Accepts two front-panel-mounted SATA drives in caddies plus two-back panel eSATA-connected drives. RS-422 and embedded web-server control. XL-WP4 Power supply included. Rack kit, Drives and Caddys not included.

Main Benefits

Record Up to 64 Mono or Poly WAV to SSD
64x Channel Dante Audio I/O
64x Channel MADI Optical and Coaxial I/O
8x Line-Level Analog Inputs and Outputs
8x Channel AES3 Digital Audio I/O
PowerSafe Circuitry Protects Files
Time Code Master Clock
Simultaneous and Sequential Recording
File Transfer Over SMB Ethernet
File Conversion Between Formats

Description

The 970: 64-Track Dante and MADI Audio Recorder

Sound Devices model 970 is a robust, 64-track Dante and MADI-equipped multi-track audio recorder. The half rack, 2U device simplifies applications requiring high-track-count, high-quality audio recordings.

MADI and Dante

The 970 records 64 channels of monophonic or polyphonic 24-bit, 48 kHz WAV files from any of its 144 available input connections. Connections include 64 channels of Ethernet-based Dante, 64 channels of optical or coaxial MADI, eight channels of line-level analog, and eight channels of AES digital. Any input can be assigned to any track. 32-track recording at 96 kHz is supported.

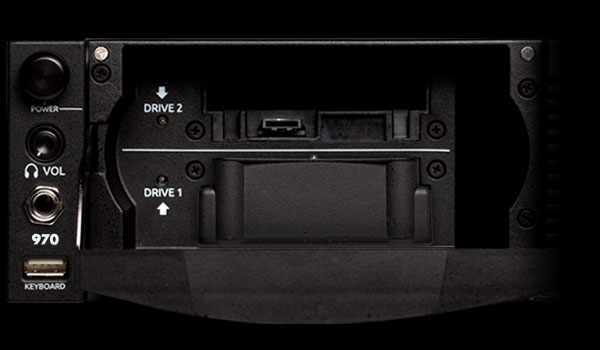

Simultaneous Multi-Drive Recording

The 970 records to any of four attached drives, two front-panel drive bays and two rear-panel e-SATA connected drives. With four available drives, material can be recorded to multiple drives simultaneously for simultaneous backups, eliminating time-consuming post-record copying. Drives can also be set to record sequentially, allowing continuous long form, high-track count recordings.

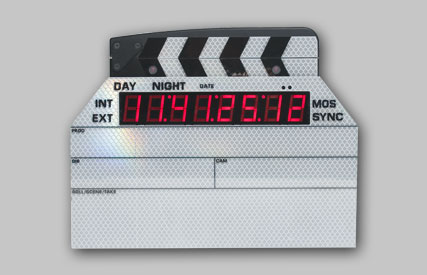

Perfect Sync

With its built-in, rock-steady Ambient timecode generator, the 970 can operate as either the master clock or it can be jammed to external devices cameras and other sources. All common production time code rates and modes are supported. The 970 also supports clock synchronization from external word clock, video, MADI, or AES. To simplify connection of multiple digital inputs, SRC’s are available at each input.

PowerSafe™ and
Dual Power Supplies

PowerSafe™ circuitry provides a constant 10-second power reserve. In the event of power loss, the 970 continues to operate for up to 10 seconds, then cleanly stops any file operation and safely shuts down. The 970 draws 10-27 VDC through a four-pin XLR connector. A secondary connection allows connection to redundant power supplies.

FileSafe™

FileSafe™ keeps recorded files intact and recoverable. Transparent to users, FileSafe™ records to an intermediate format that "finalizes" files after recording. Available for Mac OS X and Windows.

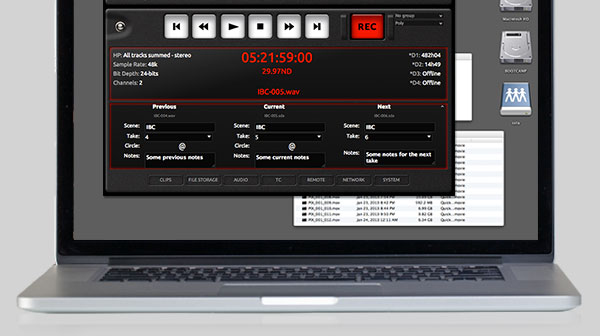

Network Connected

The 970 can be controlled from browser-capable computers and tablets. When connected to a data network, transport controls and setup menu controls are available on PIXNET. PIXNET offers control of one or multiple 970 recorders. Multiple units can be grouped for simultaneous control.

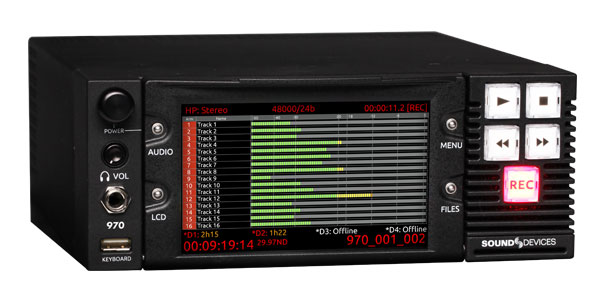

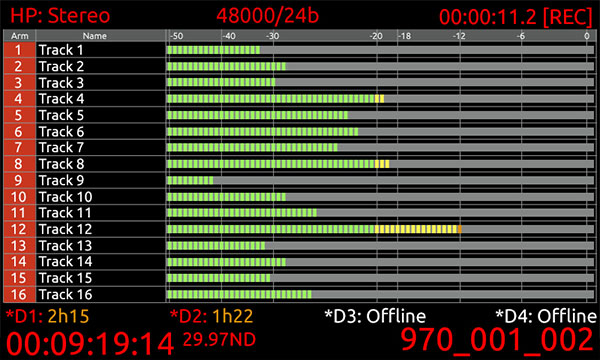

Intuitive Interface

The 970 was designed with knowledge gained from the industry’s top engineers and from Sound Devices expertise in field mixers. Recognizing that sounds engineers operate in fast-paced environments, important controls are a knob or a switch away, while extended features are quickly accessed with the intuitive LCD-based control.

Tech Specs

Analog Audio
Inputs (Analog)	8x balanced line level inputs on DB-25 Channels 1 and 2 include XLR connectors
Outputs (Analog)	8x balanced line level inputs on DB-25 Channels 1 and 2 include XLR connectors
Frequency Response	10 to 40,000 Hz ±0.5 dB at 1 kHz, -3 dB at 65 kHz (96k SR)
THD + Noise	0.004% max (1 kHz, 22 to 22,000 Hz)
Topology	Fully electronically balanced, line-level, RF, ESD, short, and overload protected; pin 2hot, pin-3 cold
Output Clipping Level	+18 dBu
Input Clipping Level	Line: +26 dBu
Headphone	front panel 1/4" with gain control
Input Impedance	10k

Digital Audio
Sampling Rate	44.1 kHz, 47.952 kHz, 47.952 kF, 48.048 kHz, 48 kHz, 48.048 kF, 96k (32 tracks) Accepts: 32 kHz, 44.1 kHz, 48 kHz, 96 kHz, 192 kHz sample rates with SRC at input
Bit Depth	16 and 24 bit
AES/EBU	Eight channels in and out via DB-25 at 110 Ω, 2 V p-p
Network / Protocol	Dante: 64 channels at 48 kHz input and output
File Formats	.wav, monophonic or polyphonic
Accuracy	± 0.2 ppm (0.5 frames per 24 hours)
Sync Output	Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 Ω)
Sync Input	Analog bi, tri level sync / genlock Wordclock (square wave, 48 kHz sampling rate, 3.3 vp-p, 75 Ω)
Timecode	Modes: OFF, REc Run, Free Run, 24h Run External Frame Rates: 23.976, 24, 25, 29.97 DF, 29.97 ND, 30 DF, 30 ND Accuracy: Ambient generator, 0.5 frame in 24 hr Time Code Input: 20 kΩ impedance, 0.3 V to 3.0 V p-p (-17 dBu to +3 dBu) Time Code Ouptut: 1 kΩ impedance, 3.0 V p-p (+12 dBu)

Control
Control	RS422 machine control Ethernet Web-based control of setup menu and transport, auto assignment or IP address or manual fixed IP address GPIO on 3 pins, Phoenix connector Keyboard Front-panel USB host, keyboards without hubs acceptable

Power
Power Supply	Dual DC 4-pin XLR (pin 1 = ground, pin 4 = +), from 10 to 27 VDC at 30 W
Circuit	Powersafe circuitry with 10 second power reserve with power removed
