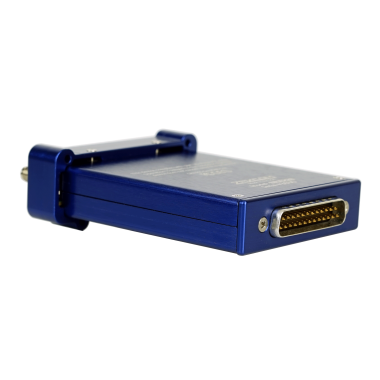

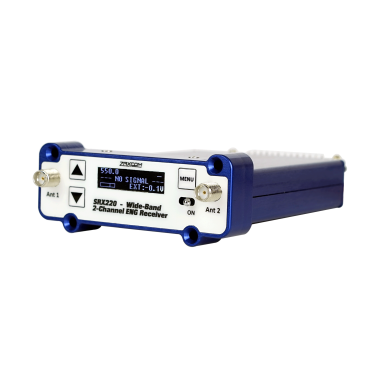

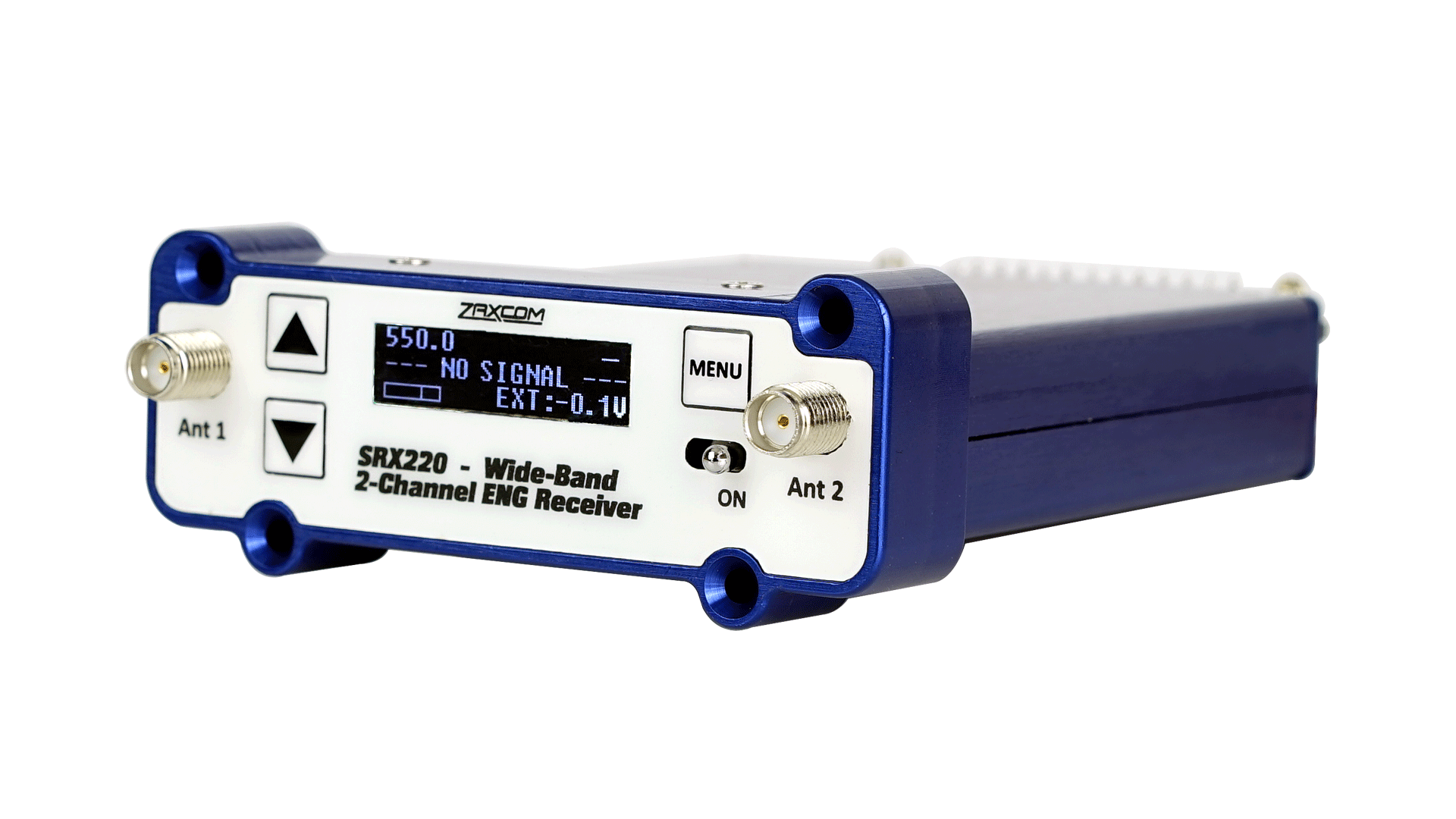

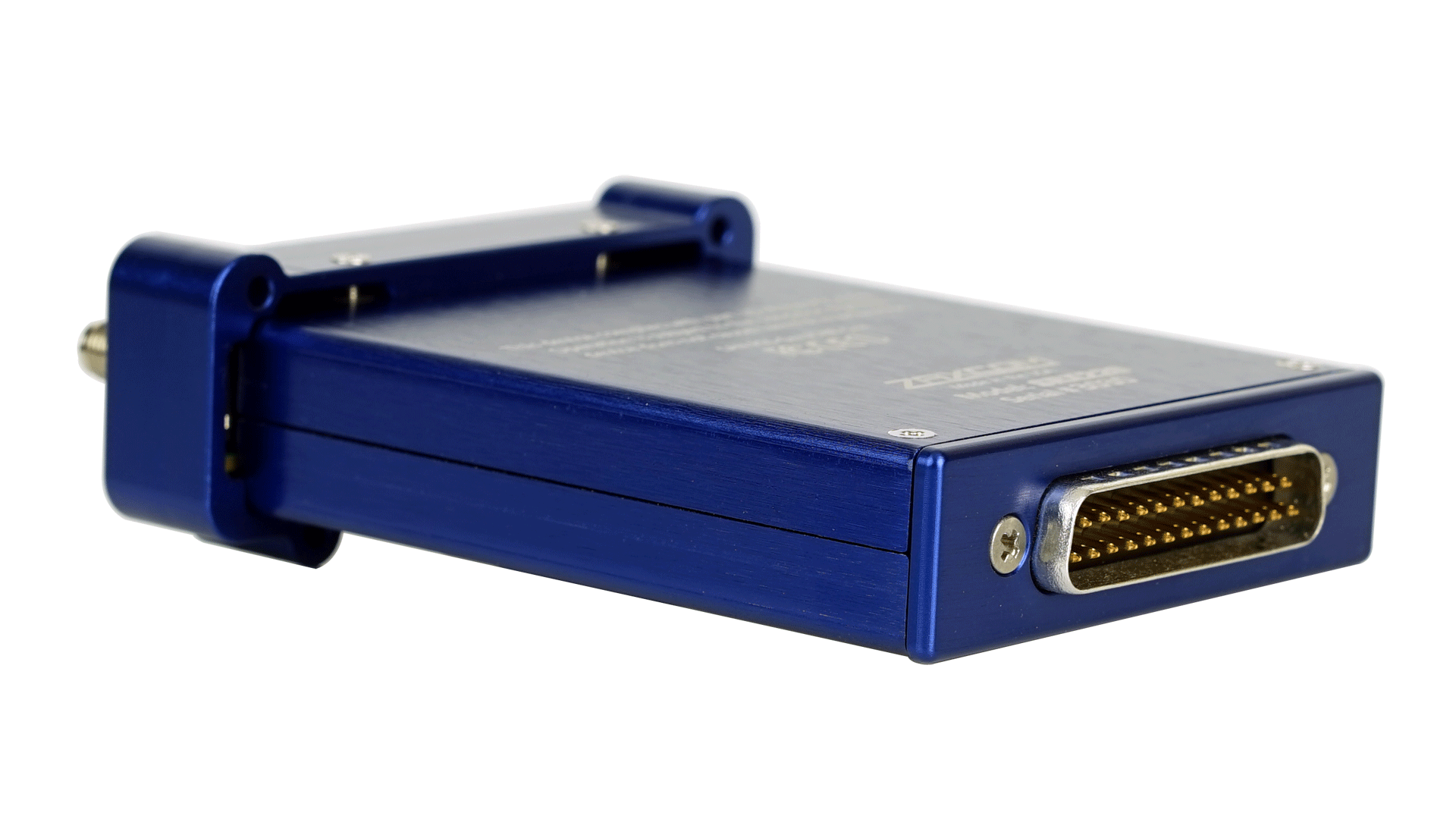

SRX220 wide-band Slot-In receiver
The SRX220 is a “Slot-in” receiver that is compatible with the Ambient VSLOT, Panasonic Slot-in cameras, Sound Devices SL-6 and other devices that accept a Slot-in receiver. It features a low profile design, making it the smallest and lightest slot-in receiver on the market.
Main Benefits
• Compatible with all Zaxcom transmitters
• Outputs up to two channels of audio from a single transmitter as either line-level, -18 dB or AES
• Receives SMPTE timecode embedded in the UHF signal and outputs timecode via the DB25 connector
Tech Specs
- Receiver
- Receiver RF Channels: 1
- Diversity method: antenna switching
- RF Modulation: proprietary digital method
- RF Frequency Range: 518 to 698 MHz
- RF Frequency Step: 100 KHz
- RF Signal Bandwidth: 200 KHz
- Channel Separation: 500 KHz (700 KHz recommended) / 100 KHz High Density Operation
- Sensitivity: -114 dBm
- Antenna Connector: 50-ohm SMA female X 2
- Receiver Audio – Analog Output X 2
- Dynamic Range: 116 dB
- Distortion: 0.002%
- Frequency Range: 20Hz to 16kHz
- DAC Bit-depth: 24 bits
- Connector: DB25
- Audio Output: Active analog balanced
- Audio Output Level: -18dBm (mic), -10dBm (consumer) or 0dBm (line)
- Receiver Audio – Digital Output
- Signal Format: AES Balanced
- AES dynamic range: 123dB
- Frequency Range: 20Hz to 16kHz
- AES output: AES3 balanced at 96KHz
- Audio Output Connector: DB25
- Timecode
- Timecode output connector: DB25
- Timecode output level: .01VPP, .2VPP, .5VVP, .9VPP, 1.5VPP
- Time code output rate: 23.98, 24, 25, 29.97 ND, 29.97 DF, 30
- Power
- External Power: 6 to 18 VDC (140mA @ 12VDC)
- Power Connector: DB25
- Misc.
- Serial Control Port: RS422
- Weight: 4.9 oz
- Dimensions: .73″ x 2.7″ x 3.75″
- Display: Graphic White OLED Panel
