Soundfish 1 Hydrophone Mark II
The ASF-1 MKII is completely designed and manufactured by Ambient Recording in response all the requests for an affordable, yet professional hydrophone for working with standard audio gear. The goal was nothing less than to create a very natural sounding, low noise underwater microphone. With the development of the Ambient “Sound Fish” the focus was on high audio quality with best handling. Therefore they designed a linear, low distortion microphone preamp offering a linear frequency response from 10Hz- 40kHz.
Main Benefits:
- Crystal clear, low noise audio from infra- to ultrasound
- Waterproof up to 100m
Overview

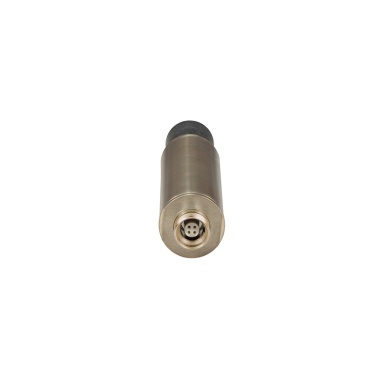

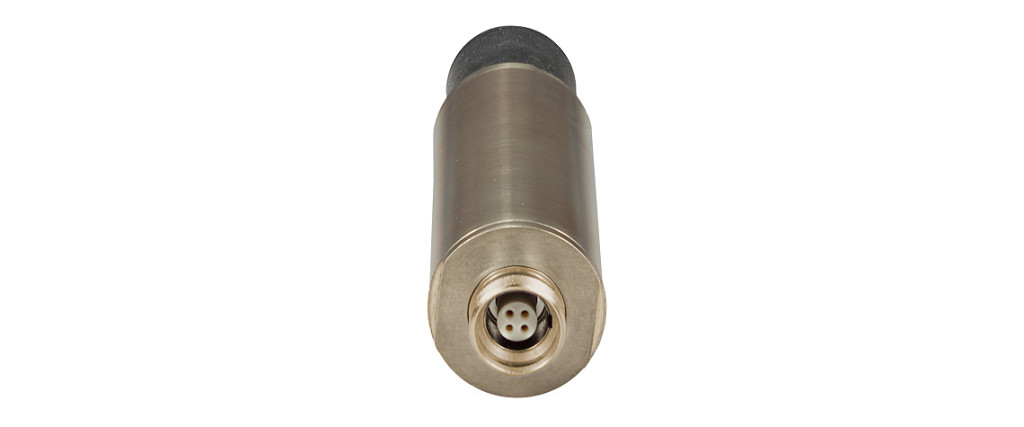

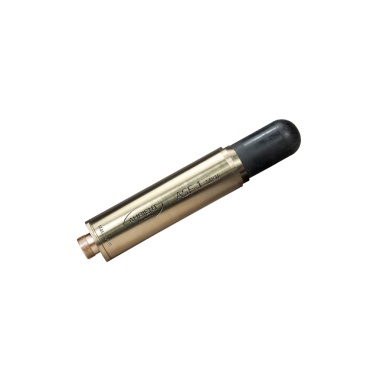

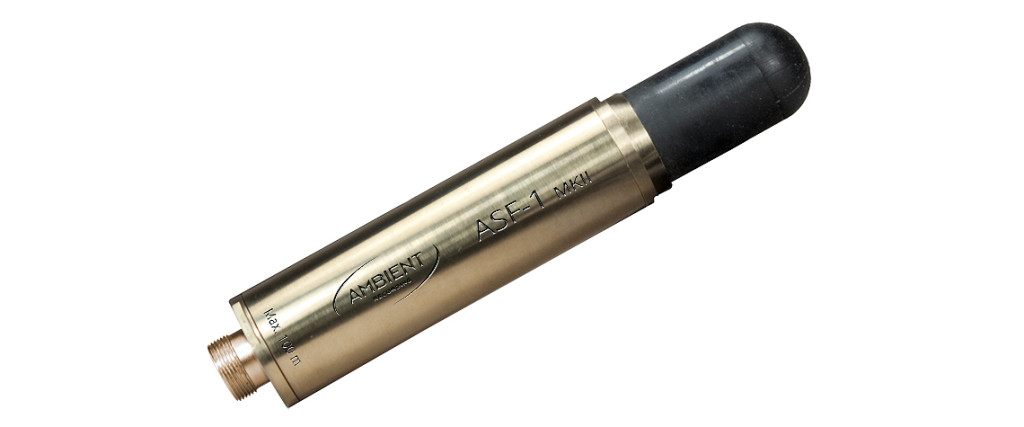

Following the idea to create an underwater microphone for professional sound recordists Ambient built a hydrophone which can be fed directly from standard 48V Phantom power. Thus, this microphone works right out of the box with all your existing audio gear without additional adaptors. The ASF-1 MKII is machined out of high quality aluminum-brass and can easily withstand the water pressure of 100m depth.

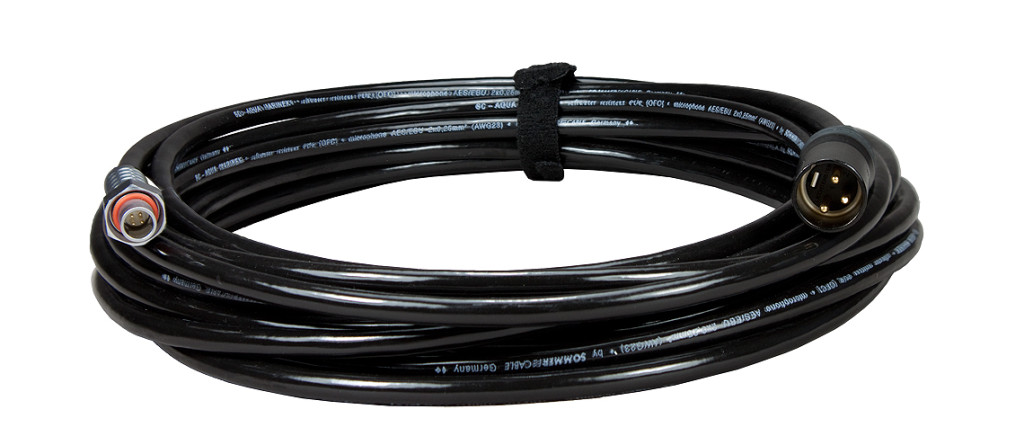

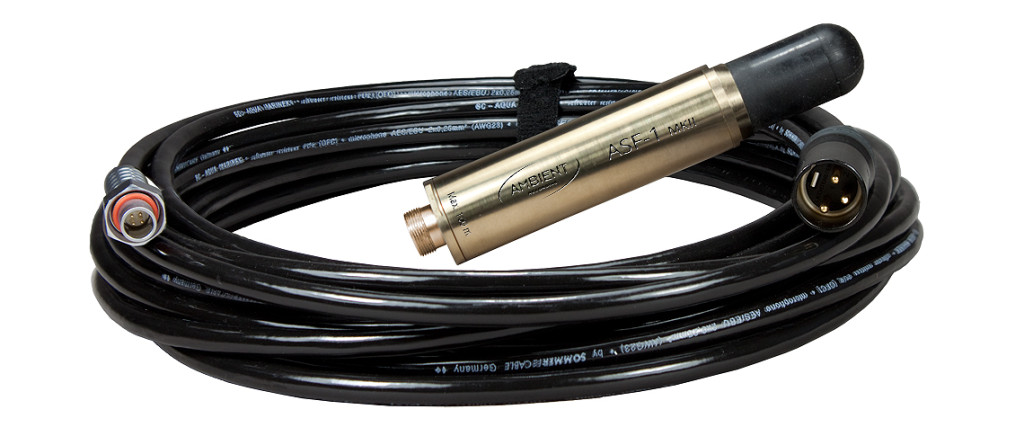

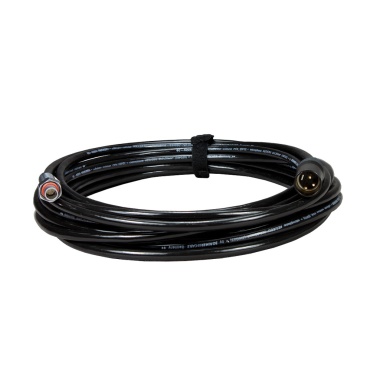

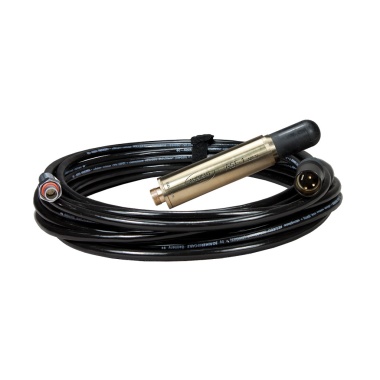

Additionally the used materials (special formulated NBR, polyurethane cable) stand out for their long term resistance against seawater. Within the purchased parts package there is a 10 meter underwater cable included with sealed AHS underwater connector. Thus, the AFS-1 MKII can be used right out of the box without additional adaptors or cables. Other cable lengths are available on request.
Tech Specs
| Frequency response: 7Hz- 40kHz (-3dB) |
| Polar Pattern: Omni directional |
| THD: 0,1% (10Hz-40kHz) |
| Dimensions (HxW):180mm x 25mm |
| Max depth: 100m |
| Housing material: aluminum-brass |
| Encapsulating material: Special formulated NBR |
| Weight (without cable): 270g |
| Power Supply: 48V Phantom |
| Included detachable 10m underwater cable |
| Special designed AHS underwater connector |
| Temperature range: -5° C to +50°C |
