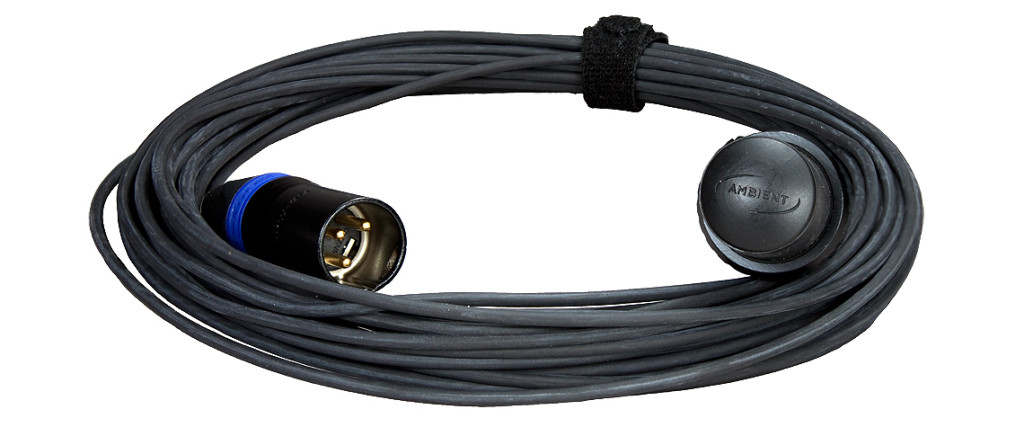

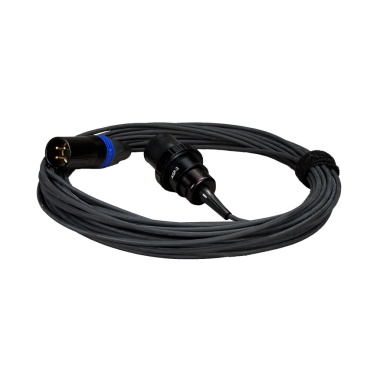

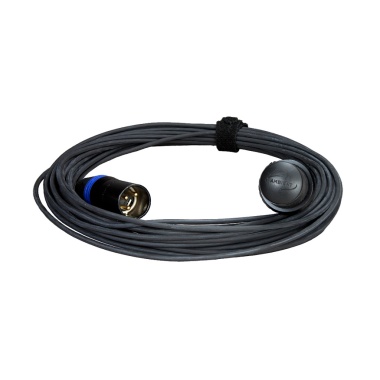

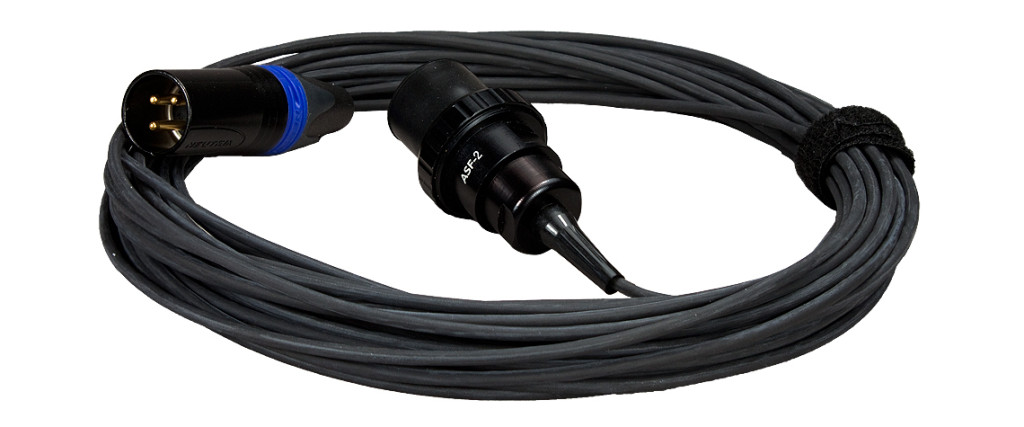

Small hydrophone with 10 Meter cable and 48 V PH
The ASF-2 MKII Hydrophone is affordable, easy to use – and simply a great sounding hydrophone. Designed with key components used in the renowned ASF-1 MKII, the ASF-2 MKII effectively utilizes the same professional hydrophone technology for outstanding underwater audio capture.
With a frequency range of 70Hz-20kHz, we designed a microphone able to capture a perfect spectrum of sounds while effectively avoiding low frequency noise created by cable handling.
Main Benefits:
- Waterproof up to 30m
- Designed to withstand roughest conditions
- Affordable
Overview
The housing is machined out of high-quality aluminum with an anodized exterior for protection against the corrosive nature of seawater, while the 10m polyurethane cable is cast into the housing for a water-tight seal. These design attributes enable the ASF-2 MKII Hydrophone to easily withstand the roughest field conditions. In addition to being an affordable hydrophone, the ground-breaking design of the ASF-2 MKII is makes it affordable to operate as it is compatible with standard professional audio equipment.
Terminated with an XLR connector and powered by 48V Phantom, this plug-and-play hydrophone is designed for use with today’s professional field mixers and recorders for outstanding underwater recordings.
Never before has professional underwater audio capture been so affordable.
Tech Specs
| Linear Frequency Range 70Hz-20kHz |
| Max THD 0,1% (70Hz-20kHz) |
| Polar Pattern omni directional |
| Power Consumption 5mA |
| Power Supply 48V Ph |
| (L / W / H) 47 x 30 x 30 mm (without cable) |
| Weight 50g (without cable) |
| Maximum Depths 30m |
| Material Anodized seawater resistant Aluminum |
| Capsule Material Special formulated NBR |
