replaced by: UMP III
Universal Microphone Powering P48 / P12 / T12

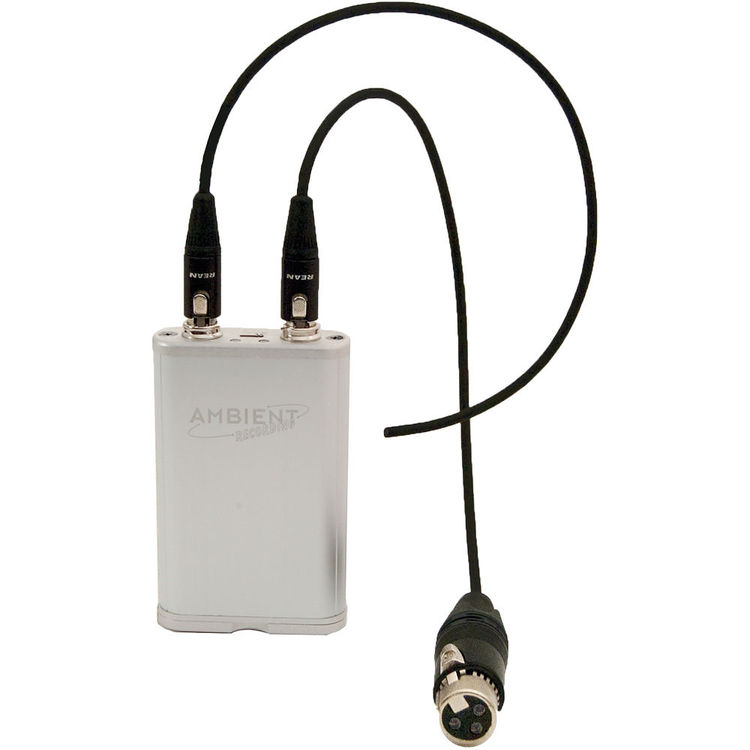

The Ambient Recording UMP II Universal Microphone Power Supply is a compact and lightweight device designed to mount on the end of a boompole or be carried on the belt with an optional UMP-BC clip (sold separately), to enhance the battery life of a wireless beltpack transmitter. The UMP II is powered by a pair of AA batteries, and features input and output connections. A 4-color LED interface indicates battery status, and selected powering mode that covers 12 and 48 volt phantom plus 12V T-power.
Main Benefits:
- For Use on the Boomtip
- Powered by 2x AA Cells
- Lengthens Beltpack Battery Life
- 4-Color LED Interface
- Input & Output Connectors
Overview
The UMP II was consequently designed for using Phantom or T-powered microphones on a “wireless boom” with typical belt pack transmitters.
The case is very light and uses 2 AA cells avoiding drain of the transmitter´s batteries and can be mounted either on the boom tip or carried on the belt with an optional clip (UMP-BC).
The autonomous supply avoids additional drain of the belt pack’s batteries and thus ensures long battery lifetime plus making the unit compatible with any transmitter with mike-level input.
The UMP II is compatible with any transmitter with mic-level input. In- and output connectors allow for individual configuration and are keyed against accidental interchange.
A 4 colored LED interface indicates battery status and selected powering mode that covers 12 and 48 Volt Phantom plus 12 V T-power.
Tech Specs
| Abmessungen (BHT): 57 mm x 92 mm x 18 mm |
| Gewicht (ohne Batterien): 100 g |
| Material: Aluminium Profilgehäuse, eloxiert |
| Mikrofonspeisearten: Phantom 48Volt | Phantom 12Volt | Tonader 12Volt |
| Stromversorgung: 3 Volt, 2x AA-Batterien (Mignon-Batterie, jede 1.5V) |
